titanium heat exchanger(MHTA-12)for swimming pool heat pump

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Supply Ability:
1500 Piece/Pieces per Week
Port:
Rongqi port or Leliu port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Gimleo
Model Number:
MHTA-12
Structure:
Tube Heat Exchanger, Type A
Liquid Flow Rate:
18 m^3/h
Maximum Working Pressure:
R:52 bar, W:12 bar
Voltage:
0
Weight:
15.3KG
Dimension(L*W*H):
715mm(length)
Power(W):
39KW
Certification:
ROHS
Warranty:
12 Months
After-sales Service Provided:
No overseas service provided
Heat capacity:
39kw (135,000BTU/h)
Used as:
Condenser or evaporator
Shell:
PVC
Tube:
Pure titanium seamless tube
Product No.:
10097
Packaging & Delivery
Packaging Details
Plywood case
Delivery Time
5~20days



Introduce

As the environmental pollution, the water quality is worse and worse, the tradition copper heat exchanger usually corroded very quickly.



Titanium has the super strong corrosion resistant ability. Our titanium heat exchanger use seamless pure titanium tube as heat conductor, can ensure the titanium heat exchanger can be used for a long time, without any cost in the after-sale services.



Due to its good properties ,the titanium heat exchanger widely used in:

Swimming pool equipment, Aquarium chiller, Marine refrigerant system, Solar energy heater, Aquaculture, Pharmacy, Food industry, Electroplating industry  and some heat recovery from the waste water or exhaust gas.

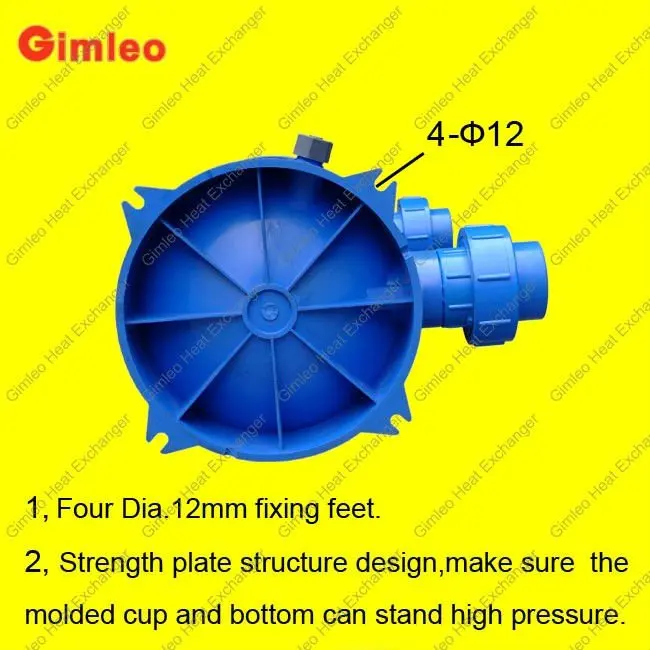

Patent  structure design: --Molded cups titanium heat exchanger

1) The cups molding by high quality PVC material . All the parts RoHS conformance .



2) Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure can be 1.2 Mpa, and the bursting pressure can be 2.3Mpa.



3)   Its loading capacity can pass the CE, UL, ETL requirement, 100,000 times alternating pressure test(Low pressure 0 bar, high pressure 8 bar) shows it can be used more than 20 years.



4)   Good appearance, more safe in using, high efficient of heat transfer, easy for installation.

      It must be your best choice.

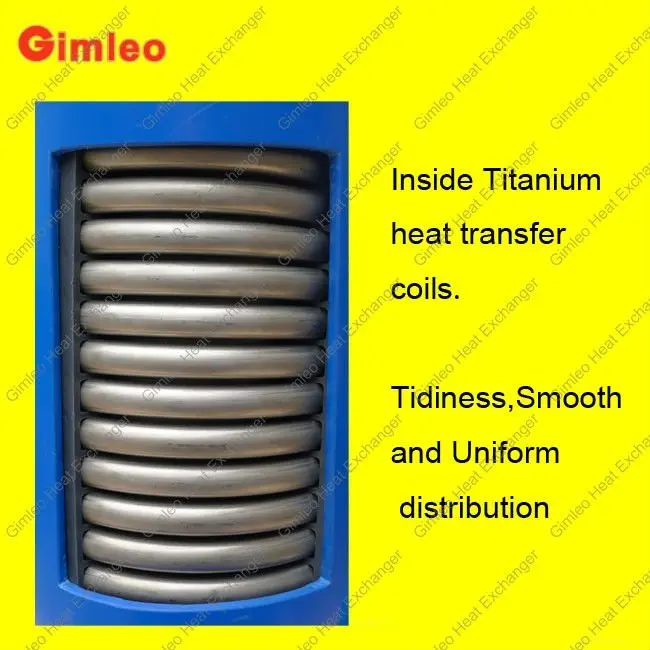

Heat transfer tube:

1) Pure seamless titanium tube .  Thickness 0.6 mm. The Grade is TA1.



2) The titanium coil pressure loading capacity was designed base R410a high pressure work condition, The max. working pressure is 52 bar. and the extreme pressure was 360bar in our test.



3) 100,000 times alternating pressure (Low pressure 0 bar, high pressure 52bar) test shows it can be used more than 20 years. Never corrosion.



Specification:

1) The data marked by orange is this model heat exchanger technical parameter. Please contact us to get the detail drawing.

2) The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.

Model

Heating Capacity

Titanium Tube Size

Water Flow

Water

Inlet &Outlet

Refrigerant

Inlet &Outlet

 Others

Btu/h     (kw)

(Dia.*Length) mm

M3/h

Inch

mm



MHTA-0.75

8800     (2.6kw)

Φ12.7*4000

1.0

1

9.52,9.52



MHTA-1

12000    (3.5kw)

Φ12.7*5000

1.5

1.5

12.7,9.52



MHTA-1.5

17000    (5kw)

Φ12.7*7000

2.2

1.5

12.7,9.52



MHTA-2

24000    (7kw)

Φ12.7*9000

3.0

1.5

12.7,9.52



MHTA-3

36000    (10.5kw)

Φ12.7*13500

4.5

1.5

12.7,9.52



MHTA-5

58000    (17kw)

Φ12.7*20000

7.5

1.5

15.88,12.7



MHTA-7

78000    (23kw)

Φ16*23000

10.5

1.5

15.88,12.7



MHTA-10

110000   (33kw)

2-Φ12.7*21000

15

2

19.05,12.7



MHTA-12

135000   (39kw)

2-Φ12.7*25000

18

2

19.05,12.7



MHTA-15

160000   (47kw)

2-Φ16*25000

22.5

2

19.05,12.7





Some detail pictures:















Product Description
